STPF

6x2 Gauss components on {001} pole figure

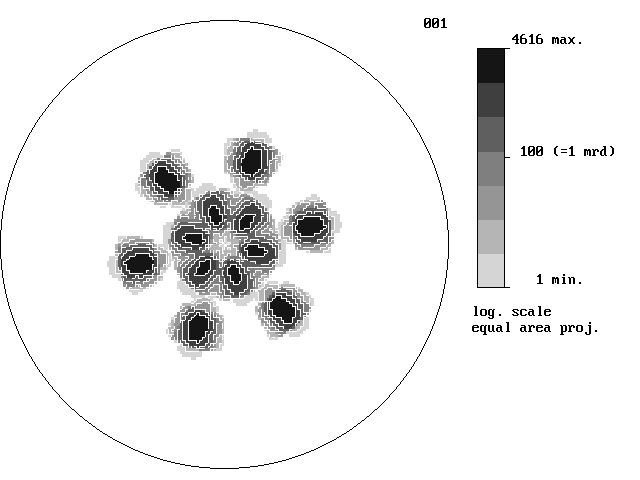

Theoretical {001} pole figures calculated with STPF, for 12 different orientations described with Gauss components (width at half maximum is 5 degrees). The Euler angles in Roe/Matthies convention are (48,12,0), (108,12,0), (168,12,0), (228,12,0), (288,12,0), (348,12,0), (12,30,40), (72,30,40), (132,30,40), (192,30,40), (252,30,40) and (312,30,40). Tetragonal crystal structure (a=4.369A, c=12.44A) and triclinic sample symmetry.

Comments and suggestions are very welcome
© 2000 - All rights reserved Daniel Chateigner
